How can I add more computers to Synergy?

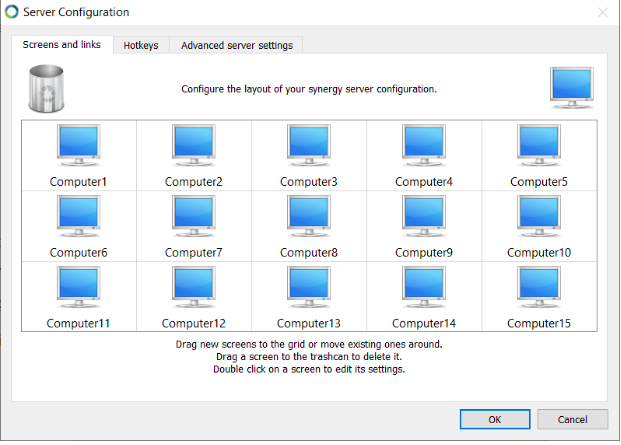

Synergy can configure up to 15 computers (1 server and 14 client computers). Supporting more than 15 computers is possible only by using a manual configuration file, as it is not possible to simply add more than 15 computers to the configuration:

To add more computers using a manual configuration file, follow the steps below:

  1. Go to the main Synergy window, File menu, and click on "Save configuration to a file":

In this example, we saved the file to C:\SynergyConfiguration\Synergy.sgc.

  1. Open the new Synergy.sgc file in a word document or notepad (or any text editor). The file should contain the following:

section: screens

Computer1:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer2:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer3:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer4:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer5:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer6:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer7:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer8:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer9:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer10:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer11:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer12:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer13:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer14:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

Computer15:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0

end


section: aliases

end


section: links

Computer1:

right = Computer2

down = Computer6

Computer2:

right = Computer3

left = Computer1

down = Computer7

Computer3:

right = Computer4

left = Computer2

down = Computer8

Computer4:

right = Computer5

left = Computer3

down = Computer9

Computer5:

left = Computer4

down = Computer10

Computer6:

right = Computer7

up = Computer1

down = Computer11

Computer7:

right = Computer8

left = Computer6

up = Computer2

down = Computer12

Computer8:

right = Computer9

left = Computer7

up = Computer3

down = Computer13

Computer9:

right = Computer10

left = Computer8

up = Computer4

down = Computer14

Computer10:

left = Computer9

up = Computer5

down = Computer15

Computer11:

right = Computer12

up = Computer6

Computer12:

right = Computer13

left = Computer11

up = Computer7

Computer13:

right = Computer14

left = Computer12

up = Computer8

Computer14:

right = Computer15

left = Computer13

up = Computer9

Computer15:

left = Computer14

up = Computer10

end


section: options

relativeMouseMoves = false

screenSaverSync = true

win32KeepForeground = false

disableLockToScreen = false

clipboardSharing = true

clipboardSharingSize = 3072

switchCorners = none

switchCornerSize = 0

end


  1. As you can see, there are two important sections of the config file, "screens" and "links". Let's place our new computer, "Computer16" right below "Computer11", but first we will first add it in the "screens" section. Right below the "Computer15" description and above "end" we will add:

Computer16:

halfDuplexCapsLock = false

halfDuplexNumLock = false

halfDuplexScrollLock = false

xtestIsXineramaUnaware = false

switchCorners = none

switchCornerSize = 0


  1. Now, we need to add "Computer16" to the "screens" section, for that, we need to do two things: (a) Edit "Computer11" Links and (b) Add "Computer16" links.

(a) As you can see, "Computer11" links are set like this:

Computer11:

right = Computer12

up = Computer6

We now need to reference that "Computer16" is down of "Computer11". We can do that by adding the link down, like this:

Computer11:

right = Computer12

up = Computer6

down = Computer16

(b) Add "Computer16" links

Now that we edited "Computer11" links, we need to add "Computer16" to the links section, again, right below "Computer15" and above "end", like this:

Computer16:

up = Computer11

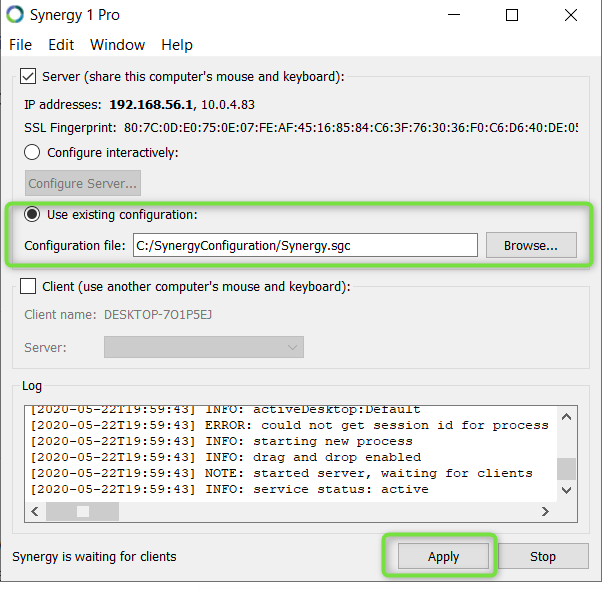

You now just need to save your configuration file and hit "Apply" on the Synergy application, already configured to use the manual config file, and you're done.



This is just an example on how to add a 16th computer to the layout, but this also applies if your array is configured differently, for example, we are assuming you have rows of 5 monitors. However, let's say you have rows of 10 computers – you can accomplish this using a manual config file. You will just need to change the links section accordingly to set which screen is to the left/right/up/down position.

If you have further questions, please reach out to the tech support team.
